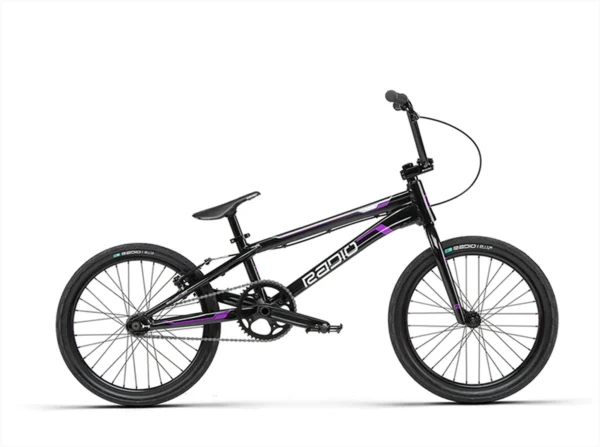

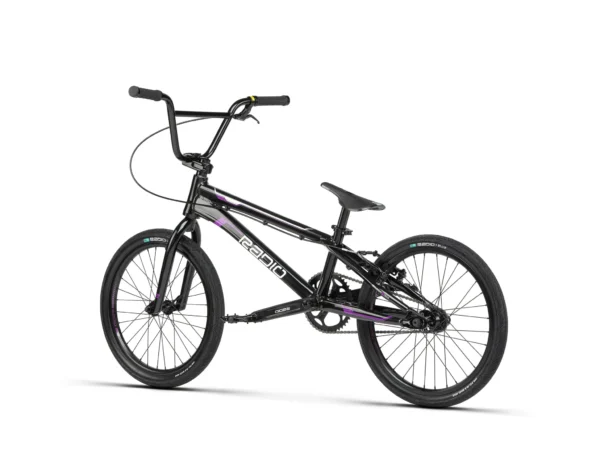

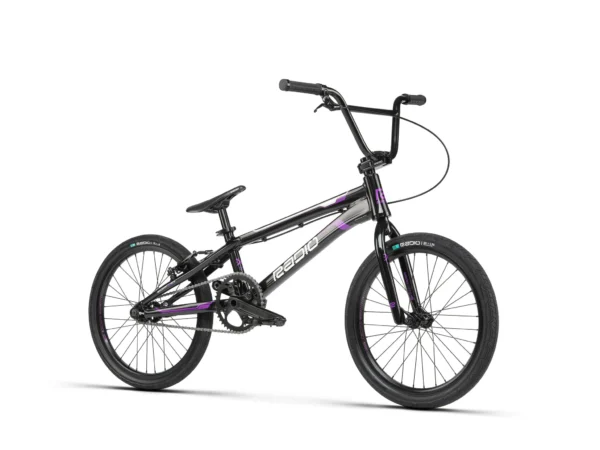

Radio Raceline Xenon Pro XL 20″ BMX Race Bike (Black/Purple)

RADIO RACELINE 20″ Xenon Pro XL Bike – Pro-Level Performance, Disc-Ready Design

Dominate the streets and parks with the Xenon Pro XL, a full-spec upgrade built for riders who demand precision, durability, and versatility. Designed with pro XL geometry and disc-brake readiness, this mid-tier beast is engineered to outperform.

Why Choose the Xenon Pro XL?

 Disc-Brake Ready – Convert to a full disc setup with Radio’s aftermarket kit (sold separately).
Premium Components – Forged dropouts, Argon Pro rims, Oxygen tires, and a cold-forged Xenon Pro crank.
Pro XL Geometry – Optimized for stability and control with a 21.25″ top tube and 14.8″ chainstay.
Built to Last – Hydroformed 6061-T6 alloy frame, Cr-Mo fork, and sealed bearing hubs for maximum durability.

---

 Full Specifications

Frame & Fork

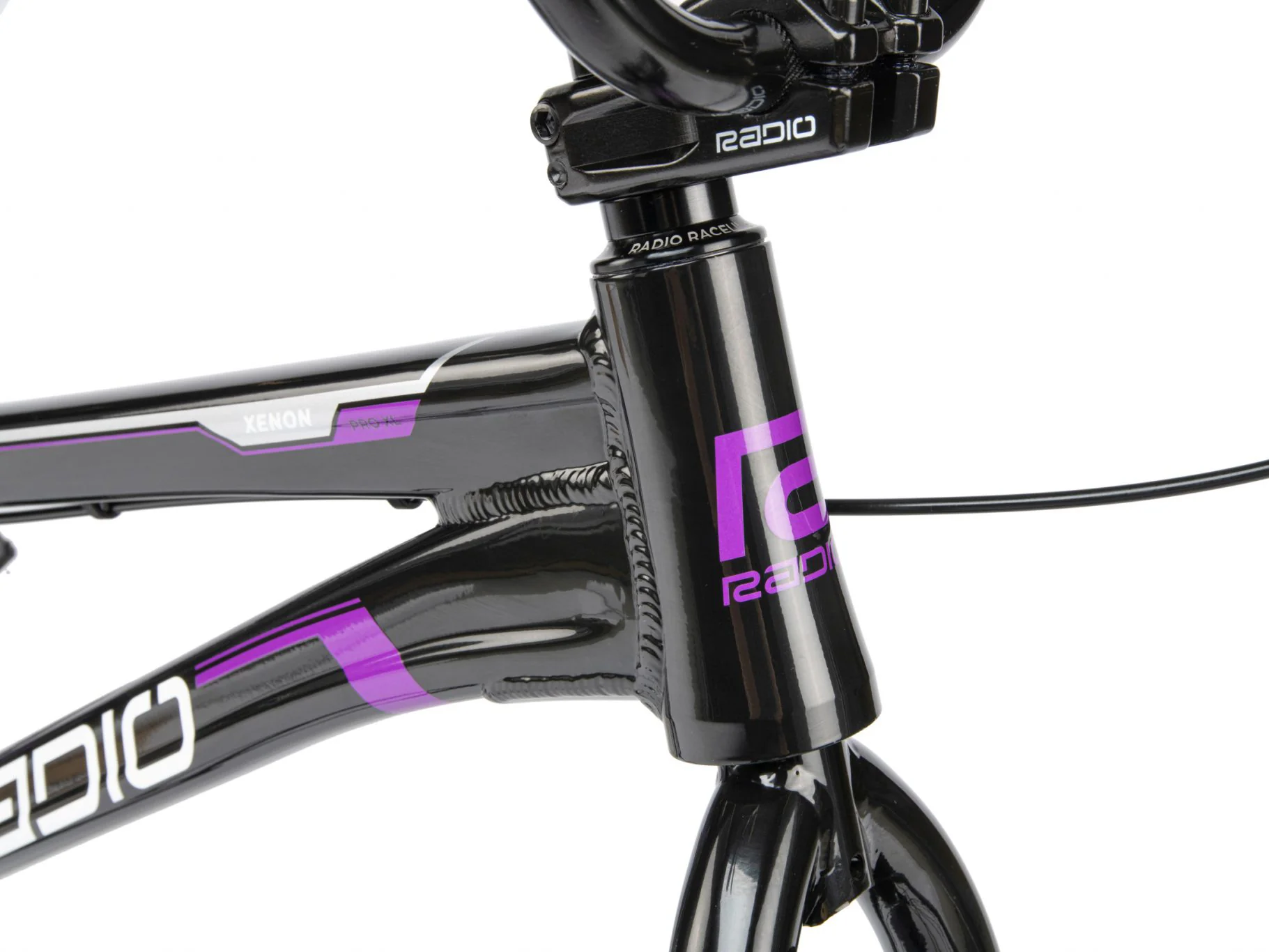

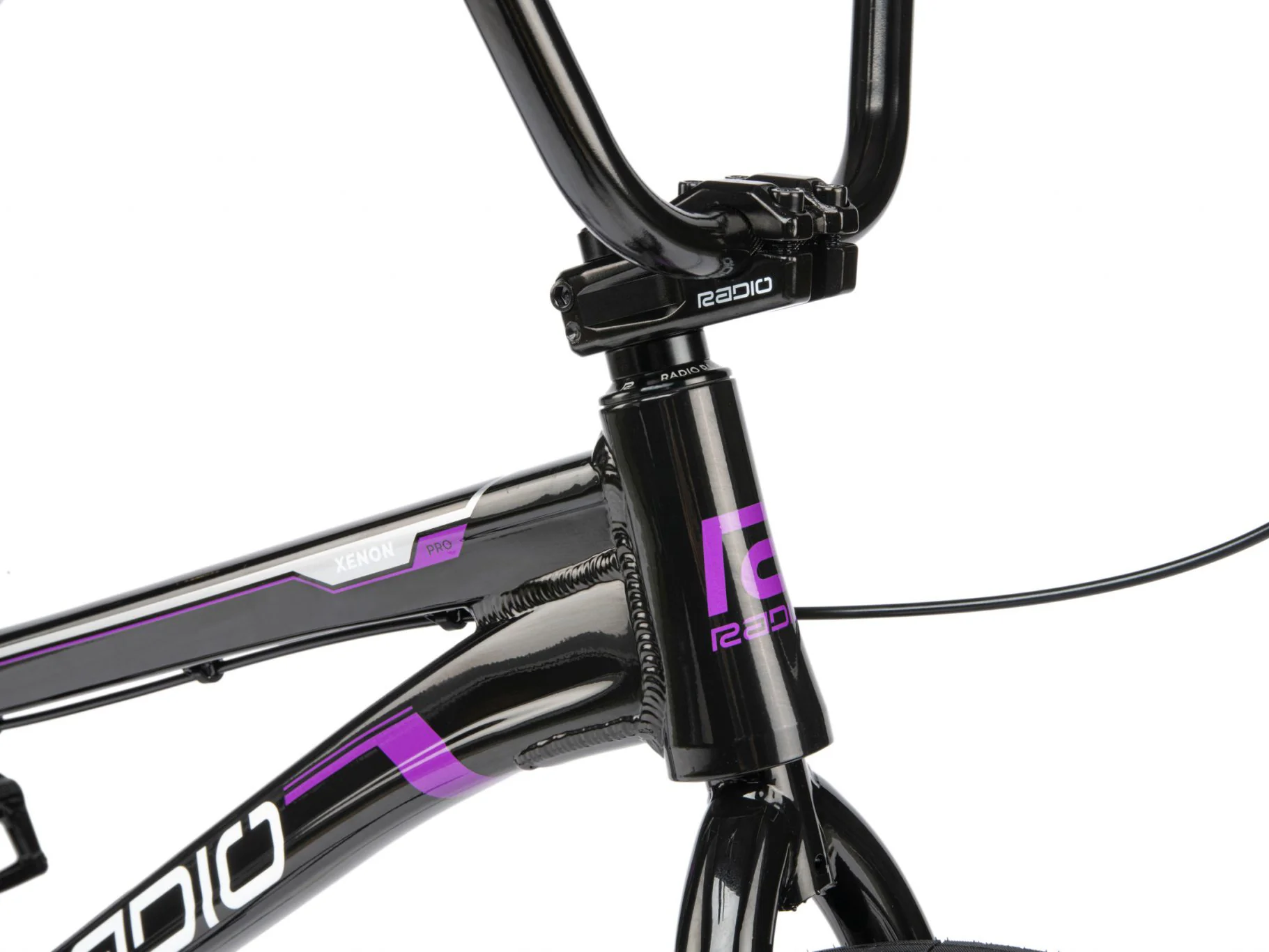

• Frame: Hydroformed 6061-T6 alloy, forged disc-ready dropouts, integrated chain tensioners

• Fork: Cr-Mo legs, 1-1/8″ butted steerer tube, 30mm offset

Drivetrain & Brakes

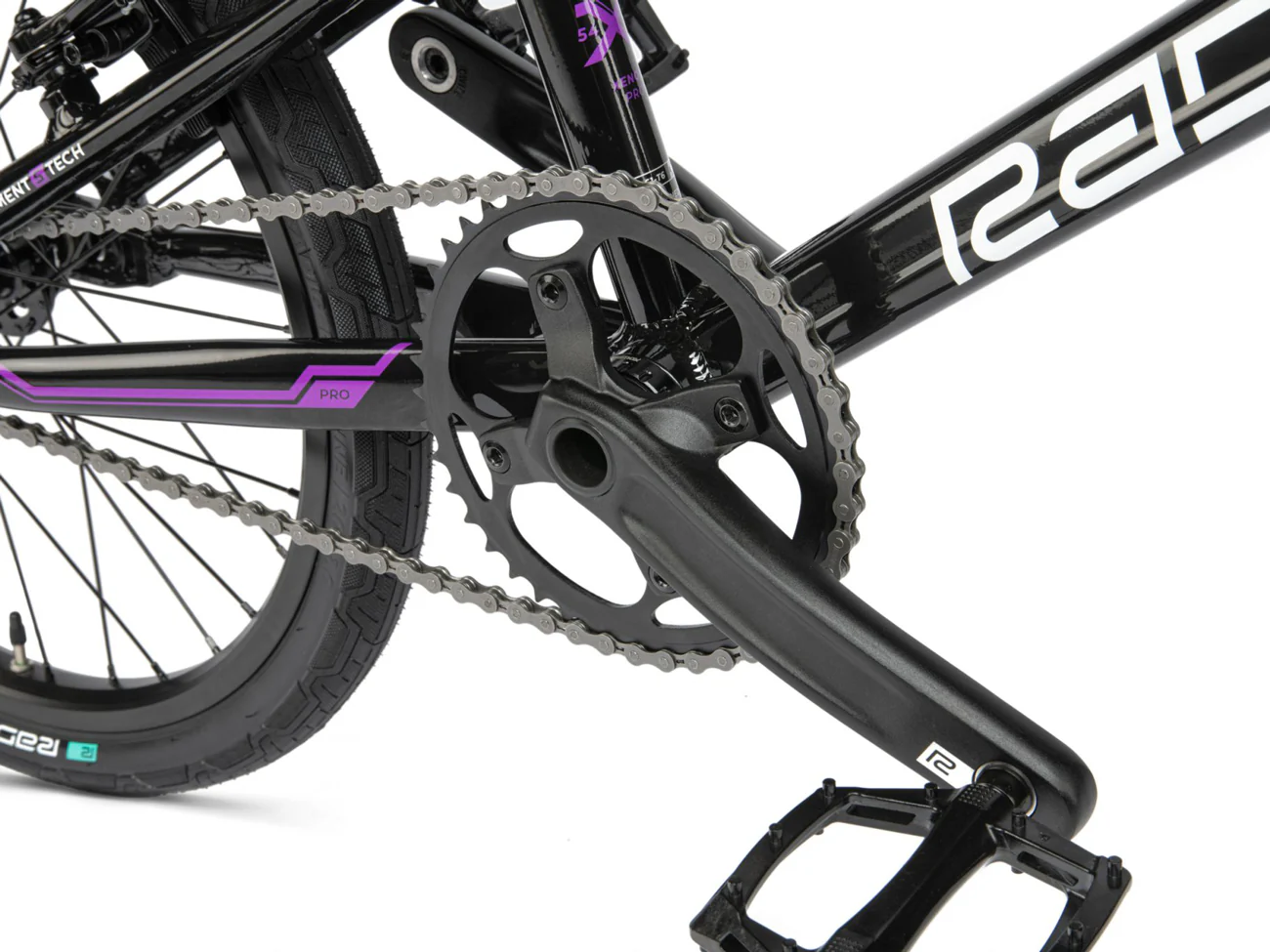

• Crank: Radio Xenon Pro 2pc cold-forged alloy (180mm, 24mm spindle)

• Sprocket: 44T alloy

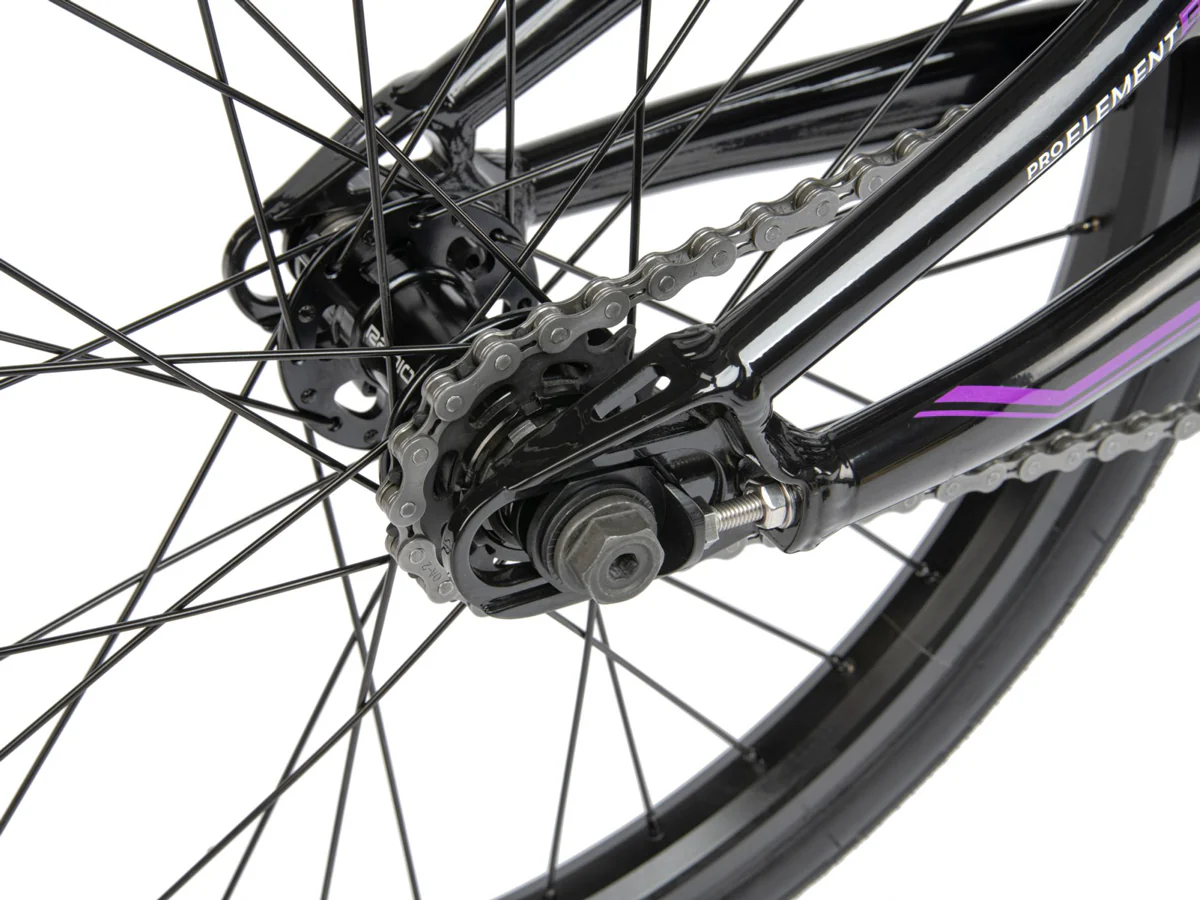

• Driver: 16T sealed cassette

• Brakes: Promax alloy U-brake (rear) – Upgradeable to disc brakes

• Chain: KMC Z6 (1/2″ x 3/32″)

Wheels & Tires

• Rims: Radio Argon Pro (36h, sleeved joint)

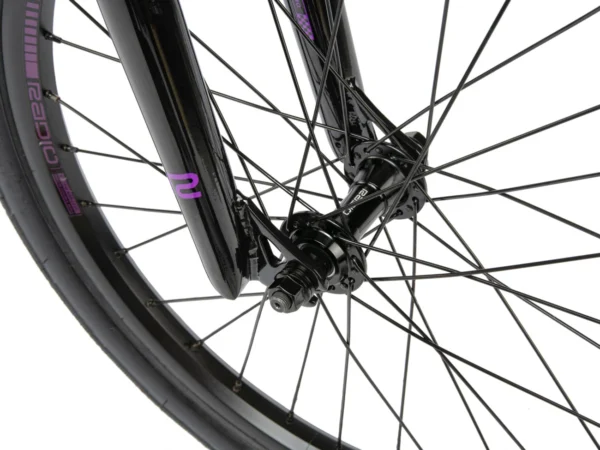

• Hubs: Fully sealed CNC alloy (3/8″ Cr-Mo axles)

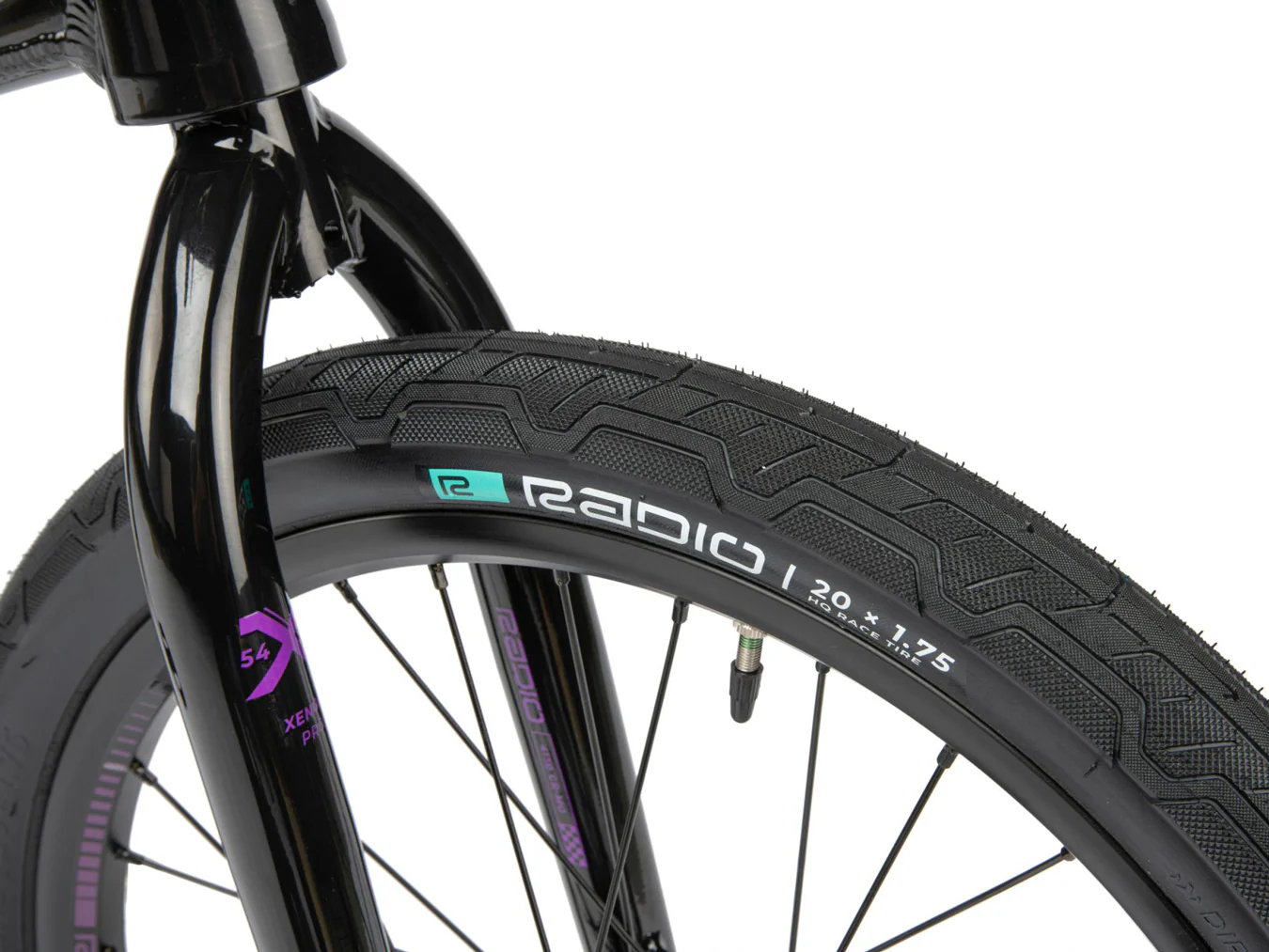

• Tires: Radio Oxygen (Front: 20″x1.75″, Rear: 20″x1.6″)

Cockpit & Comfort

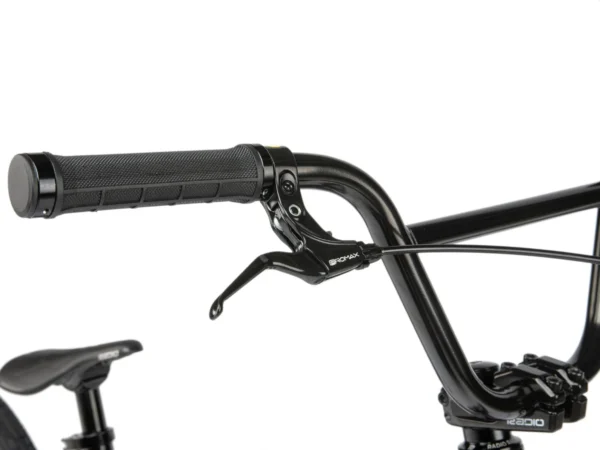

• Handlebars: 6061-T6 alloy (28.25″ wide, 8.1″ rise)

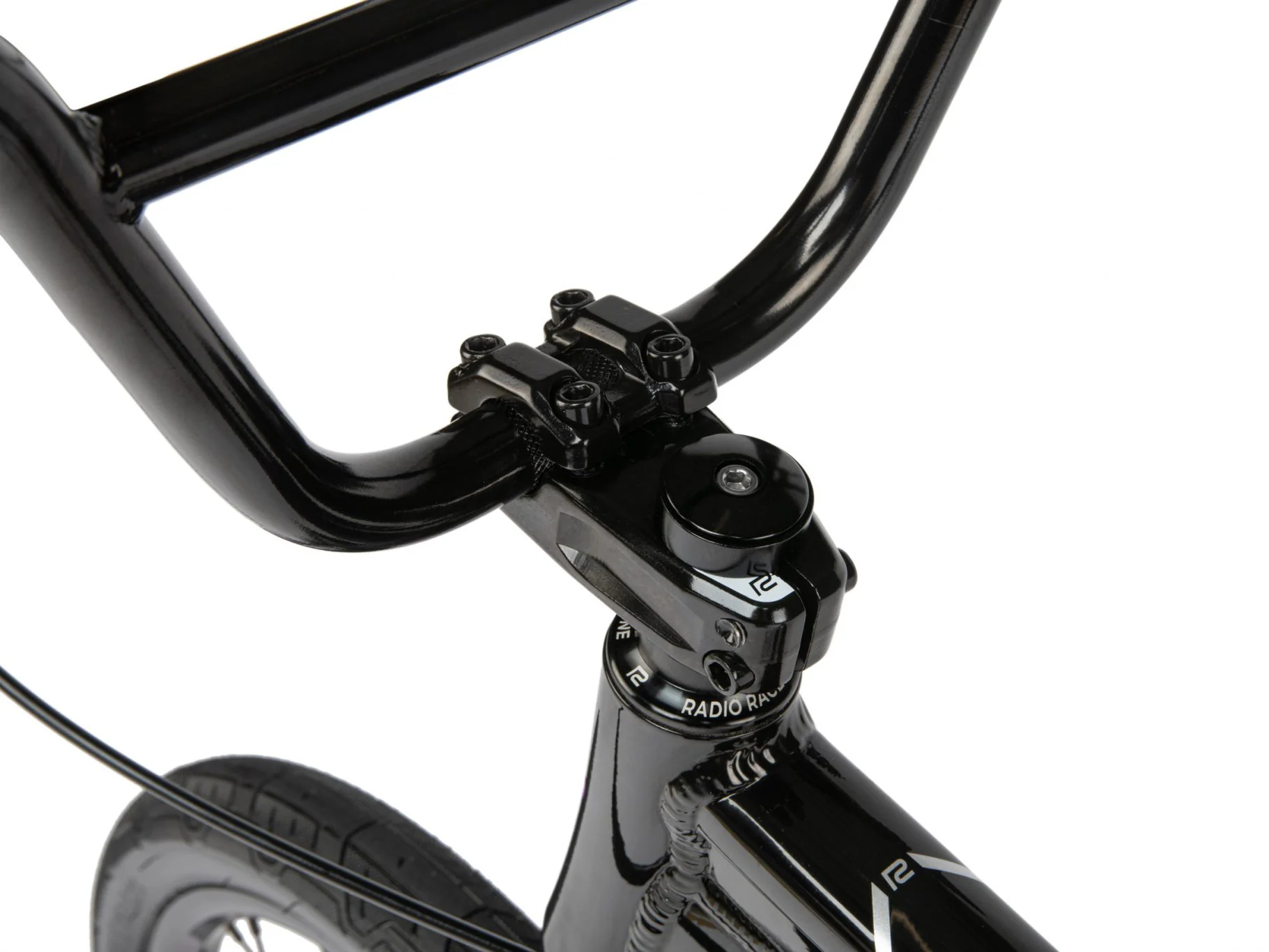

• Stem: Radio Xenon Pro toploader (53mm extension)

• Grips: Diamond knurling, clamp-on (139mm)

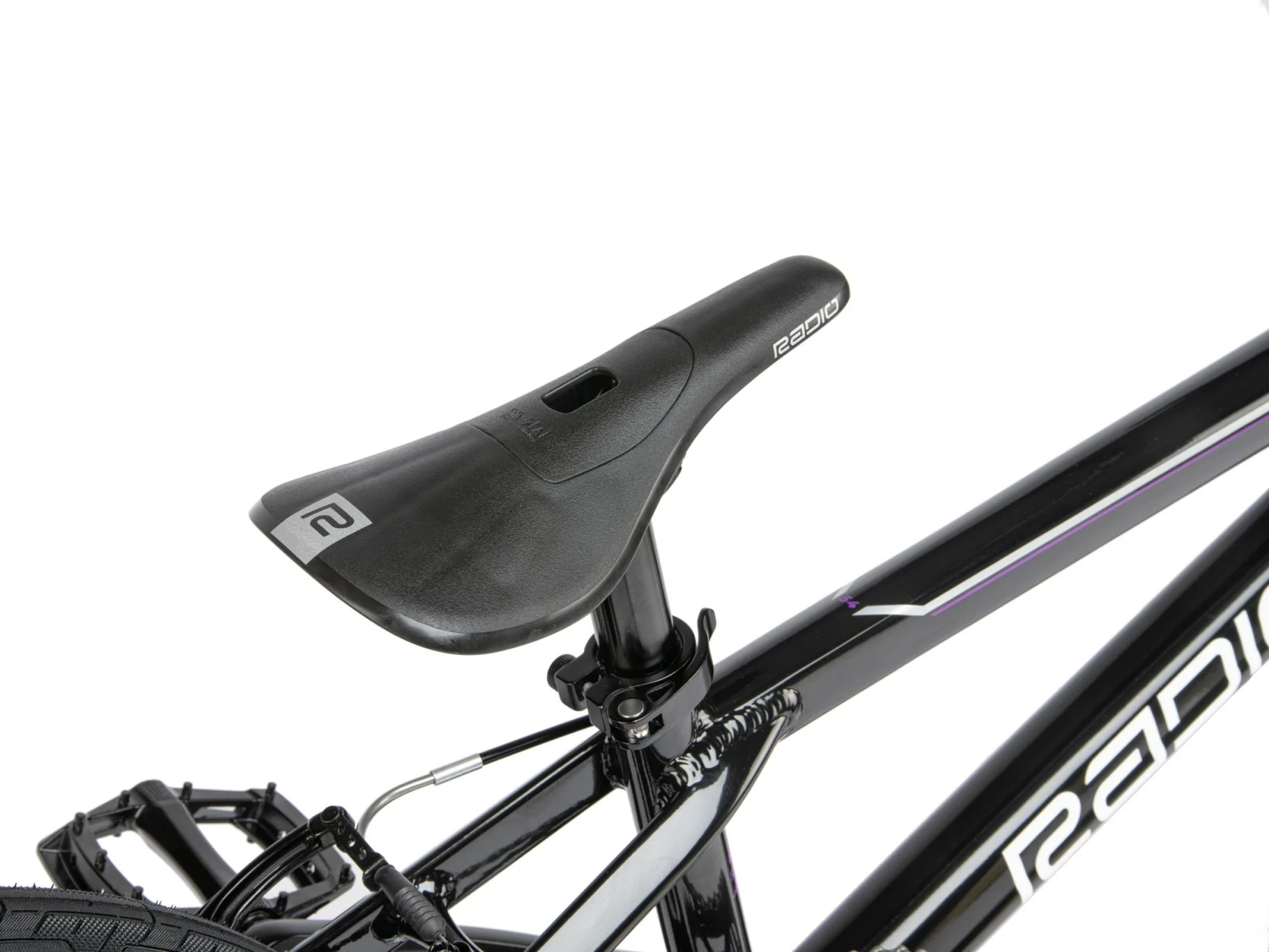

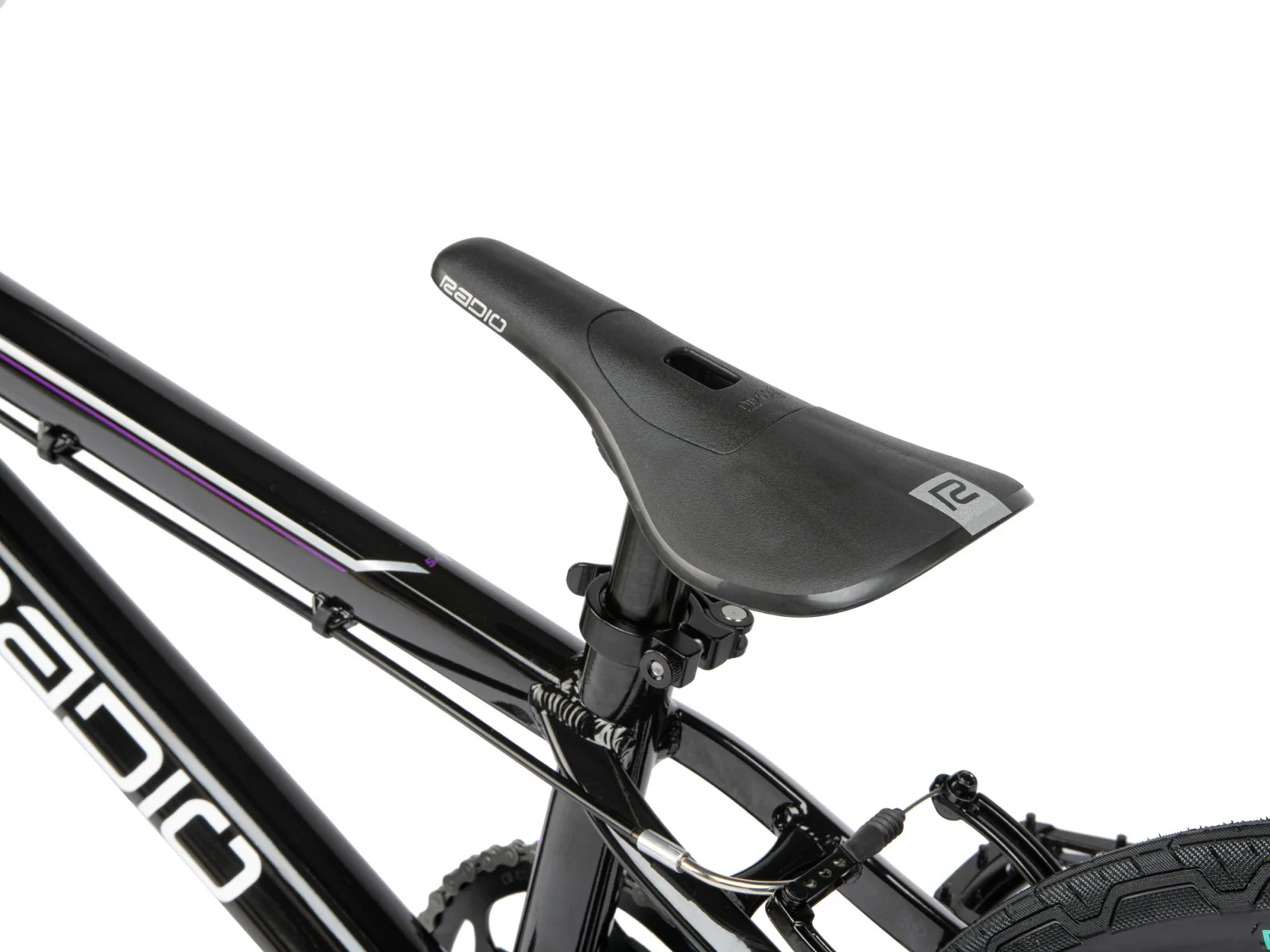

• Seat: Pivotal design (no padding)

• Seat Post: 27.2mm alloy

Geometry (Aggressive & Stable)

• Top Tube: 21.25″

• Chainstay: 14.8″

• Head Tube Angle: 74°

• BB Height: 11.6″

---

 Shipping & Assembly

• Partially assembled – Requires final setup (handlebars, wheels, pedals, etc.).

• Need help? Contact BMXCrewHub Support for assembly tips!

 Ready to Ride Hard? Grab the Xenon Pro XL today and experience pro-level performance!
